Mitsubishi Mini Split Sizing Calculator
If you want to figure out what size Mitsubishi mini split you might need, the fastest way is to use a mitsubishi mini split sizing calculator that runs a cooling load calculation before you open a single product book. Our free mini split sizing calculator takes your ZIP code, room dimensions, windows, year built and other load factors and returns a BTU/h cooling load you can match directly to Mitsubishi indoor and outdoor units.
Before you click over to the calculator, you might want to have these details ready:
-
ZIP code - this determines the outdoor design temperatures and elevation for your local area
-
Room dimensions - this is the room length, room width and ceiling height for each space
-
Windows and doors - this is the count, the approximate size and which walls they are on
-
Year built - the calculator uses it to estimate insulation and air leakage
-
Exterior walls - this is how many of the room's walls face outdoors
-
Window details - this is the glass type, any shading, and which way the windows face
Sizing Calculator
A Sizing Calculator for Mitsubishi Mini Splits
The calculator uses ACCA Manual J 8th Edition methodology with U.S. climate data organized by ZIP code, so the load comes out in the same BTU/h terms Mitsubishi publishes its capacities in. It's free, browser-based and doesn't require an account. Enter your data, get your load and move on.
Section 03
Why a Mitsubishi‑Focused Sizing Approach Matters
Correct sizing is important for any air conditioner, but it is more important for inverter-driven ductless units like Mitsubishi's. Advanced inverter technology helps Mitsubishi systems to adjust capacity during operation. The compressor speeds up in peak heat and slows down during mild conditions to run efficient cycles. That adjustment only works well when the unit is matched to the actual load. An oversized system reaches setpoint too quickly, triggers short cycling and never runs the long, low-speed cycles that remove moisture and keep energy consumption low. ACCA says that making HVAC equipment too large can contribute to short cycling and higher operating costs.
Mitsubishi has hyper-heat models rated to keep heating at outdoor temperatures as low as −13°F or −22°F depending on the model, standard cooling-only lines and nameplate capacities from about 6,000 BTU/h on the smallest single-zone units up to 60,000 BTU/h on the biggest multi-zone outdoor units. With that range, there is almost always a model that fits your calculated load without going up by a full ton "just in case." Properly sizing a mini-split system prevents issues of short-cycling or constant running with poor comfort.
Mitsubishi also puts out detailed capacity tables that show net cooling and heating output at specific outdoor temperatures. These are 47°F, 17°F, and 5°F for heating, and 95°F and above for cooling. That data lets you closely match your Manual J cooling load and your local climate zone instead of relying on rough rules of thumb.
Why a Load-Based Calculator Matters for Mitsubishi Mini Splits
A proper sizing calculator does more than give you a single number. It gives you a result you can use. Here's what it changes about the choice process:
- Better Comfort in Peak Heat. The calculator uses your ZIP code's 1% cooling design dry-bulb temperature, which means the result is sized for the kind of heat your area only beats on a handful of the hottest hours. With a Mitsubishi unit sized to that load, you can hold 75°F inside when it's hottest outside, instead of falling behind on the worst afternoons.
Section 04
How the Mitsubishi Mini Split Sizing Calculator Works
Our calculator is built on ACCA Manual J 8th Edition methods. You enter your ZIP code and room details. It returns a cooling load in BTU/h for each room, and the emailed report shows where the heat gain comes from-walls, windows, people, appliances, infiltration. The gold standard for accuracy is a Manual J heat load calculation, and this tool follows the same physics.
Our calculator sizes from the cooling load, with indoor design conditions of 75°F and 50% relative humidity. The heating math is in the code but switched off, because a mini split is picked on its cooling capacity first. Once you have the cooling tonnage locked, you verify that the Mitsubishi model retains enough heating capacity at your winter design temperature-a step we'll cover below.
The tool turns a ZIP code into climate data by taking the first three digits, placing them on a map, and picking the nearest of 582 U.S. weather stations. Each station has a 1% cooling dry-bulb, its mean coincident wet-bulb, a 99% heating dry-bulb, and an elevation. That's how Manual J design conditions work-local outdoor design temperatures dictate the needed heating and cooling capacity.
Step 1: Enter Your ZIP Code and Home Info
This step takes seconds. Enter your 5-digit U.S. ZIP code so the tool can pick the nearest of 582 weather stations and auto-fill outdoor design temperatures and elevation. Climate conditions dictate the needed capacity for heating and cooling, and this lookup handles that automatically.
Using the ZIP's 1% cooling design dry-bulb temperature and mean coincident wet-bulb for latent load, the tool assumes indoor conditions of 75°F and 50% RH. This climate-based approach is more accurate than picking a generic "hot" or "mild" setting from a dropdown when sizing Mitsubishi units. It reflects what actually happens outside your walls during peak summer.

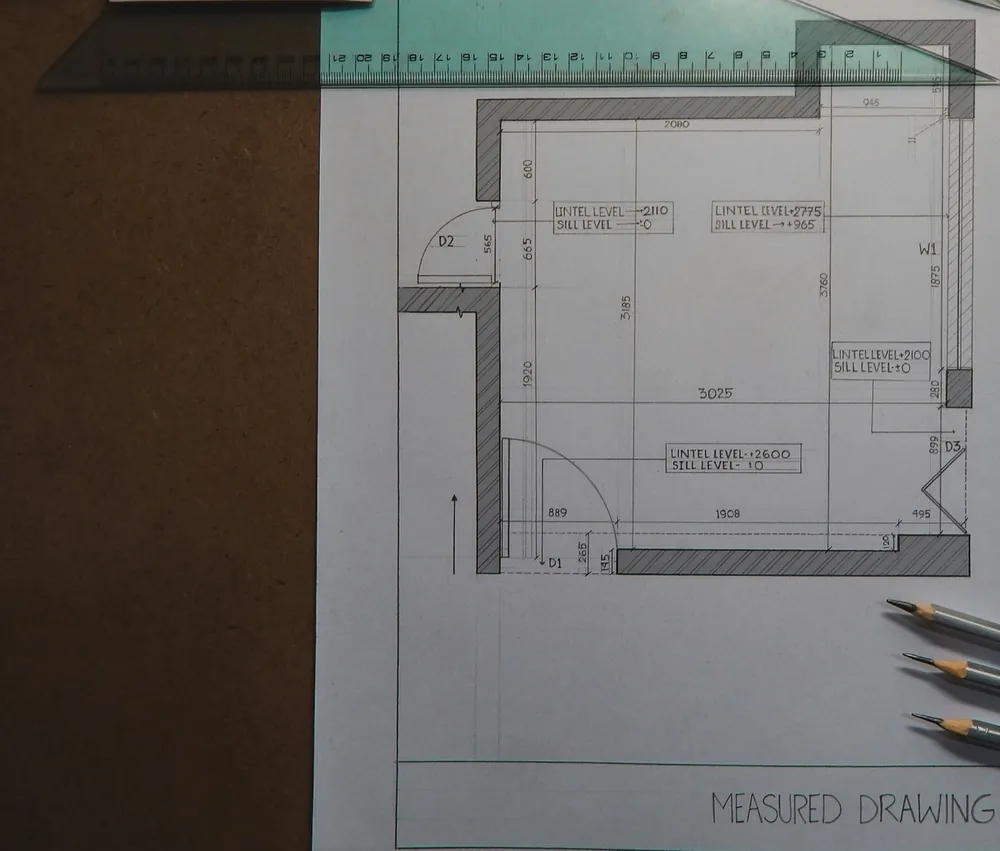

Step 2: Describe Each Room or Zone
This is where you define the rooms you might put Mitsubishi indoor units in. For each space, you'll provide:
-
Room name (for example, "Master Bedroom," "Kitchen," "Home Office")
-
Room length and room width in feet, plus the ceiling height
-
Number and size of windows and exterior doors
-
How many exterior walls the room has (an interior room gains less heat than a corner room)
-
Typical occupancy - this is how many occupants spend time in the space
-
Angled or vaulted ceilings, with the low and high heights, if any
The tool turns these into surface areas and volumes for Manual J conduction, solar gain and ventilation math. Mini split calculators need room dimensions and insulation state to produce results you can use. Room characteristics affect the needed BTU capacity.
One outdoor unit can run several indoor units. Mitsubishi lists multi-zone setups up to 8:1. For multi zone mini split systems, repeat this step for each room or open area that will get its own indoor unit.
Step 3: Adjust Insulation, Leaks and Sun
Think of these controls as fine-tuning the load. Various factors beyond room size affect the final number a lot:
Insulation quality. There is no insulation dropdown. You enter the year the home was built and the calculator estimates wall, ceiling and floor insulation from that. Insulation quality affects sizing needs a lot. As a loose rule of thumb people use 20 to 25 BTUs per square foot for a decent house and more for a drafty one, but that is a shortcut, not a standard. Spaces that are high-performance or well-insulated need fewer BTUs per square foot. Poor insulation needs extra BTUs to keep the temperature where you want it.
Air leakage and doors air tightness. The calculator estimates leakage from the year built, the number of stories and how exposed the house is to wind. A leaky envelope means more outdoor air is getting in, which raises the load the future Mitsubishi unit must handle. House insulation and air sealing work together here.
Sun exposure. Pick the window type and shading, and in Pro mode the direction each window faces. Room orientation affects solar gain and cooling load. For a rough cross-check, ENERGY STAR's room air conditioner guidance says to increase capacity by 10 percent for a very sunny room.
Step 4: Review the BTU/h Cooling Load
The calculator gives you back a total cooling load in BTU/h. You get a total per room, and the emailed report adds a sensible and latent breakdown for the whole project. This total number is the one you'll compare to Mitsubishi mini split capacity ratings. It's not just "square feet × 20–25."
Email yourself the breakdown by room and by part. You'll use it when talking with a contractor, when scanning Mitsubishi submittal sheets, or when deciding whether an insulation upgrade would shrink the load enough to drop to a smaller and cheaper unit. Manual J calculations account for your home's unique thermal characteristics, and having that detail in hand puts you ahead of most homeowners walking into a quote.
Section 05
Turning Calculator Results into Mitsubishi Mini Split Sizes
Mitsubishi indoor units and outdoor units are both rated. You need to ensure the indoor head's capacity and the outdoor condenser's net capacity both line up with your load at your design temperature. Most ductless systems are sold in nameplate sizes. These are 6,000, 9,000, 12,000, 15,000, 18,000, 24,000, 30,000, and 36,000 BTU/h. But real delivered capacity depends on conditions. A unit that has a 12,000 BTU nameplate doesn't always deliver exactly 12,000 BTU at every outdoor temperature. That's why you check the engineering data, not just the box.
Matching a Single-Zone Mitsubishi Head to a Room Load
Suppose the calculator gives a 7,400 BTU/h cooling load for a 180 sq ft bedroom in Atlanta, Georgia. Here's how to turn that into a Mitsubishi choice:
-
Look at the 9,000 BTU nominal wall-mounted head first. A 6,000 BTU unit is below the 7,400 BTU/h load, so it leaves no margin. A 12,000 BTU unit is over 60% above the load and would be too big for this room, which risks oversizing and humidity problems.
-
Check the engineering manual for the 9,000 BTU model's net capacity at 95°F outdoor / 75°F indoor. If it delivers around 8,500–9,200 BTU/h at those conditions, it comfortably exceeds the 7,400 BTU/h calculated load without being double.
-
Verify the sensible heat ratio (SHR) on the spec sheet, especially since Atlanta is humid. If the model's SHR is in the 0.70–0.78 range, it's removing a good share of moisture. Window types affect heat transfer and load calculations, so confirm your window inputs were accurate.
-
Don't jump to 12,000 BTU just for "peace of mind." Oversized units lead to rapid cycling and discomfort. The inverter in a properly sized Mitsubishi unit modulates down on mild days and ramps up on hot ones-that flexibility is the whole point.
Sizing a Mitsubishi Multi-Zone from Room Loads
The calculator's room list can be summed to size a Mitsubishi multi-zone outdoor unit. Mini split systems link multiple indoor units to one outdoor unit. The math starts with individual rooms.
Consider a 1,500 sq ft main floor in Charlotte, NC with four zones. There is a kitchen/dining area at 10,500 BTU/h, a living room at 8,200 BTU/h, an office at 5,900 BTU/h, and a small den at 4,800 BTU/h. That sums to about 29,400 BTU/h total cooling load. A Mitsubishi multi-zone condenser in the 30,000–36,000 BTU class would cover the load at design temperature.
Mitsubishi systems allow for overbuilding where indoor head capacities exceed outdoor unit capacity. This means the sum of nameplate indoor head BTUs can be somewhat larger than the outdoor unit's rated capacity, because not every room peaks at the same moment. But the total calculated load still has to fit inside the outdoor unit's net capacity at design conditions.
Before final choice, check line length limits, port capacity and minimum connected load in Mitsubishi's multi-zone documentation. Mini split systems allow independent temperature control in each room, but only if each head is properly sized to its zone load.
Elevation, Extreme Heat and Cold-Climate Models
Elevation matters. Higher elevations reduce air density, which reduces both airflow and equipment capacity. NREL measured a 7.4% average heating capacity loss and a 9.1% COP loss for a mini split running at Golden, Colorado's elevation versus sea-level-equivalent airflow. If you're installing a Mitsubishi unit at 5,000+ feet, that capacity haircut needs to be accounted for when matching your load to a model.
Hot climates. In locations where the design dry-bulb temperature reaches the high 90s or above, use the calculator's higher load result to cross-check Mitsubishi capacity tables at 95°F or even 100°F outdoor, rather than just the standard 95°F rating point. A unit that looks fine at 95°F may fall short at 102°F if your ZIP's design temperature is that high.
Cold climates and Hyper-Heat. For heating-driven projects in very cold climate zones, you still use the cooling load to choose tonnage, then verify in Mitsubishi's Hyper-Heating product data that the unit retains enough heating capacity at 5°F or below. Across ENERGY STAR certified mini-split combinations, the median unit kept about 84% of its 47°F heating capacity at 5°F, and about one in five listed as much or more capacity at 5°F than at 47°F. Mitsubishi's H2i models (look for "HZ" or "NLHZ" at the end of the outdoor model number) are engineered for this range. Mitsubishi lists heating down to −13°F on some lines and −22°F on its current single-zone Hyper-Heating units, and output at the very bottom of the range can be below nameplate, so check the submittal for your exact model.
Makes this Calculator Different
What Makes This Calculator Different for Mitsubishi Mini Split Planning
Most online sizing tools ask for room square footage and a climate zone dropdown. That's a starting point, not an answer. Here's what sets our hvac load calculator apart:
- ZIP‑Code‑Specific Weather Stations. Our 582-station network means your design temperature and elevation come from the nearest station's approximate ASHRAE design values, not a broad regional guess. The difference between Phoenix (design dry-bulb around 108°F) and Minneapolis (around 89°F) dramatically changes the load-and the Mitsubishi model that fits.
Section 07
Real-World Examples from Calculator to Mitsubishi Size
Example 1 Sizing a Mitsubishi Ductless Unit for a 400 sq ft Bedroom
Scenario: A 400 sq ft bedroom in Dallas, TX with 9 ft ceilings, one exterior wall, two medium windows facing west, average insulation and two occupants.
Calculator inputs and result: The user enters the Dallas ZIP code, which pulls a 1% cooling design dry-bulb of about 100°F. Room dimensions are 20 ft × 20 ft, ceiling height standard calculations adjusted up because 9 ft ceilings exceed 8 feet. Taller ceilings mean more wall area and more air, so the load goes up. With west-facing windows adding heat gain from afternoon direct sunlight, say the calculator returns about 8,500–9,200 BTU/h cooling load.
Mitsubishi match: A nominal 9,000 BTU wall-mounted unit. Check the engineering data to confirm its net cooling at 95°F or 100°F outdoor and 75°F indoor comfortably covers the calculated load. A 6,000 BTU unit falls short of the load, and a 12,000 BTU unit would overshoot the load by 30%+ and risk short cycling.
Adjustments: If the homeowner adds blackout shades to the west windows, the solar part drops and the load might dip closer to 7,800 BTU/h. If attic insulation above the room is upgraded, it drops further. Either way, the 9,000 BTU nominal head still fits-it just runs at a lower inverter speed more of the time, saving energy.
Example 2: Mitsubishi Multi-Zone for a 1,500 sq ft Floor
Scenario: An open-plan main floor in Charlotte, NC-living room, kitchen/dining area, home office and small den-totaling about 1,500 sq ft of room square footage.
Calculator breakdown: Charlotte's 1% cooling design dry-bulb is in the low 90s°F. The kitchen/dining area shows the highest per-room load (around 10,500 BTU/h) because it is the biggest room with the most people in it. The living room comes in around 8,200 BTU/h with large windows on two walls. The office contributes about 5,900 BTU/h, and the den about 4,800 BTU/h. Total: about 29,400 BTU/h.
Mitsubishi match: A multi-zone outdoor unit in the 30,000–36,000 BTU class. Indoor heads sized to each zone: a 12,000 BTU head for the kitchen/dining, a 9,000 BTU head for the living room, a 6,000 BTU head for the office, and a 6,000 BTU head for the den. Confirm that the combined indoor head nominal capacity falls within the outdoor unit's allowable connected range per Mitsubishi specs, and that the outdoor unit's net capacity at the Charlotte design temperature covers the 29,400 BTU/h total load. A mini split system can be customized for unique room layouts, and Charlotte's moderate climate makes a standard (non-Hyper-Heat) single outdoor unit a reasonable choice.
Example 3 High-Humidity Climate and SHR Considerations
Scenario: A 350 sq ft living room in Tampa, FL. The calculator yields a moderate sensible load-say 6,800 BTU/h-but the latent load is big because Tampa's coincident wet-bulb is high.
What to watch: The total cooling load might be around 9,500 BTU/h once latent heat from humidity is included. That latent fraction matters more here than in a dry climate. The user should look at the sensible vs. latent balance in the calculator's emailed report and then check Mitsubishi spec sheets for the SHR of candidate models. SHR varies by model and is listed on the Mitsubishi submittal sheet as "sensible heat factor"-a lower SHR means more moisture removal.
Section 08
Who Should Use a Mitsubishi Mini Split Sizing Calculator
The calculator is a tool for planning and education-not a replacement for a licensed design when required by code. A professional load calculation helps prevent under or oversizing issues in HVAC systems. There are projects where that professional stamp is non-negotiable.
Good Fit for the Calculator Alone
You'll get reliable results from the calculator if your project is relatively simple.
Even in these cases, verify equipment choice with local code requirements and the Mitsubishi installation manual. Mini splits work best when installation quality matches the sizing precision.
When You Need a Full Manual J and Mitsubishi Design
You should hire a licensed design engineer or Mitsubishi-trained contractor when:
Section 09
Pricing and Planning Your Mitsubishi Mini Split Project
Right-sizing avoids paying for a larger Mitsubishi condenser and extra-large indoor heads that a correct load calculation shows are unnecessary. A 36,000 BTU outdoor unit generally costs more than a 24,000 BTU one, plus higher energy bills from a system that's too big for the space and can't run efficient cycles.
Use the calculator output when requesting quotes from Mitsubishi-trained contractors so bids are based on a defined load, not vague guesses. Ask contractors how they sized the recommended Mitsubishi equipment and whether their numbers line up with the calculator's cooling load. If there's a significant gap, ask why. Climate zones dictate the necessary heating and cooling capacity, and a contractor who can't explain their sizing logic may be guessing.
Using Calculator Output When Getting Quotes
Bring these talking points to every bid meeting:
-
"Our main-floor load is about 22,000 BTU/h total. Which Mitsubishi outdoor and indoor units are you recommending, and what is their net capacity at our design temperature?"
-
"Our ZIP's 1% design dry-bulb is 97°F. Have you checked the Mitsubishi capacity table at that outdoor temperature, or just used the 95°F rating?"
Section 11
Get Your Mitsubishi Mini Split Size in Minutes
Stop guessing and start with a number that means something:
- Run the calculator with your ZIP code and room details-it takes a few minutes per room
FAQ
Frequently Asked Questions About Mitsubishi Mini Split Sizing
Is a Mitsubishi Mini Split Sized Only by Square Footage?
No. Square footage is just a starting point. Loads vary with insulation quality, window quantity and orientation, sun exposure, air leakage, ceiling height, how many occupants use the space, and climate. A 300 sq ft room in Houston has a very different cooling load than a 300 sq ft room in Portland. That's why the sizing calculator and Mitsubishi capacity tables matter. They account for the critical variables that room size alone misses. One British thermal unit is the energy needed to raise or lower the temperature of one pound of water by one degree Fahrenheit. How many of those BTUs your room needs depends on far more than floor area.
What if my Mitsubishi mini split is larger than the calculator load?
A small margin above the calculated load gives you a buffer for unusually hot days or slight input errors. But doubling the load causes problems. Oversized units lead to rapid cycling: the compressor hits setpoint quickly, shuts off, restarts and repeats. That frequent cycling wastes energy, wears components and kills humidity control. In humid climates, long steady run times are what pull moisture out, and an oversized unit that cycles on and off does not get them.
Does the calculator tell me which exact Mitsubishi model to buy?
The calculator outputs BTU/h loads, not brand-specific model numbers. Use the load to narrow down Mitsubishi gear by checking capacity in their product pages, engineering submittals or product catalogs. A Mitsubishi-trained contractor can confirm the final model, refrigerant line lengths and installation details. The calculator gives you the number. The catalog and the contractor give you the hardware.
